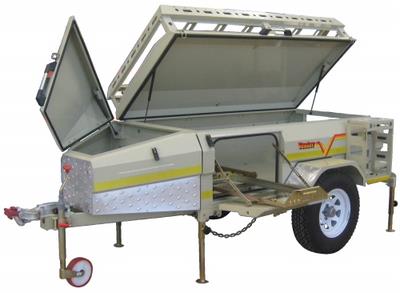

Savuti XL with rear or side rackout

Features

Zinc-galvanised steel body, epoxy powder coated, colour beige
A deep body of 590 mm for those larger items.
Four extension legs providing stability on uneven ground
A robust roof rack provides for carrying large items externally, such as tent, includes a table compartment
The trailer is fitted with a large nosecone, with gas lift assisted lid, mounted on the front A-Frame
Aluminium handle on trailer lid and nosecone lid
Plastic handle toggle catch on trailer lid and nosecone lid
Provision to attach a tent onto the roof rack
One jerry-can container and one gas bottle holder mounted on the side of the trailer, or two jerry-can containers please advise on order.
A wide rear tailgate for access to the trailer interior, without lifting trailer lid
A side door for access to drawout rack
A gas lift assisted trailer lid allowing for access to the trailer interior, even with the tent attached
8 inch adjustable jockey wheel
36 inch 8 blade leaf springs
8 ring holders for securing luggage inside
Forged Alko pivoting coupler, allowing full lateral and vertical articulation between towing vehicle and trailer
Strong construction using 30% more steel than standard trailers allowing for 4×4 conditions
Long-life 1250kg axle, numberplate twin light, multi-function LED lights
Steel-belt light truck/recreational radial-ply tyres with a multipurpose pattern for on-and off-road use. The tyre offers excellent off-road traction, braking and manoeuvrability in wet or dry conditions.
These tyres have excellent high-speed steering ability plus high levels of comfort, ride refinement, low noise characteristics and improved straight-line performance in highway applications.
Spare wheel.
Side-drawout rack (490mm x 990mm) for housing an Engel 15 litre fridge/freezer (Model No: MT17F), or optional storage containers

Dimensions
A Height (over all) 1330 mm
B Height (side) 840 mm
C Length (body) 2110 mm
D Length (over all) 3225 mm
E Width (inside) 1135 mm
F Width (over all) 1585 mm
G Ground Clearance 300 mm to bottom of axle
J Length (nose-cone) 650 mm
H Height (body) 625 mm



Technical Info
Tare Mass 380 kg
GVM 750 kg
Pay Load 370 kg
Brakes None
Axle Length 1400 mm
Axle Capacity 1250 kg
Leaf Springs 8 blade 36 inch
Wheels 205×14″



Doors
Door (rear – height) 400 mm
Door (rear – width) I – Tailgate 620 mm
Door (side – height) 440 mm
Door (side – width) 620 mm

Description

Savuti XL with rear or side rackout

Features

Zinc-galvanised steel body, epoxy powder coated, colour beige
A deep body of 590 mm for those larger items.
Four extension legs providing stability on uneven ground
A robust roof rack provides for carrying large items externally, such as tent, includes a table compartment
The trailer is fitted with a large nosecone, with gas lift assisted lid, mounted on the front A-Frame
Aluminium handle on trailer lid and nosecone lid
Plastic handle toggle catch on trailer lid and nosecone lid
Provision to attach a tent onto the roof rack
One jerry-can container and one gas bottle holder mounted on the side of the trailer, or two jerry-can containers please advise on order.
A wide rear tailgate for access to the trailer interior, without lifting trailer lid
A side door for access to drawout rack
A gas lift assisted trailer lid allowing for access to the trailer interior, even with the tent attached
8 inch adjustable jockey wheel
36 inch 8 blade leaf springs
8 ring holders for securing luggage inside
Forged Alko pivoting coupler, allowing full lateral and vertical articulation between towing vehicle and trailer
Strong construction using 30% more steel than standard trailers allowing for 4×4 conditions
Long-life 1250kg axle, numberplate twin light, multi-function LED lights
Steel-belt light truck/recreational radial-ply tyres with a multipurpose pattern for on-and off-road use. The tyre offers excellent off-road traction, braking and manoeuvrability in wet or dry conditions.
These tyres have excellent high-speed steering ability plus high levels of comfort, ride refinement, low noise characteristics and improved straight-line performance in highway applications.
Spare wheel.
Side-drawout rack (490mm x 990mm) for housing an Engel 15 litre fridge/freezer (Model No: MT17F), or optional storage containers

Dimensions
A Height (over all) 1330 mm
B Height (side) 840 mm
C Length (body) 2110 mm
D Length (over all) 3225 mm
E Width (inside) 1135 mm
F Width (over all) 1585 mm
G Ground Clearance 300 mm to bottom of axle
J Length (nose-cone) 650 mm
H Height (body) 625 mm



Technical Info
Tare Mass 380 kg
GVM 750 kg
Pay Load 370 kg
Brakes None
Axle Length 1400 mm
Axle Capacity 1250 kg
Leaf Springs 8 blade 36 inch
Wheels 205×14″



Doors
Door (rear – height) 400 mm
Door (rear – width) I – Tailgate 620 mm
Door (side – height) 440 mm
Door (side – width) 620 mm
