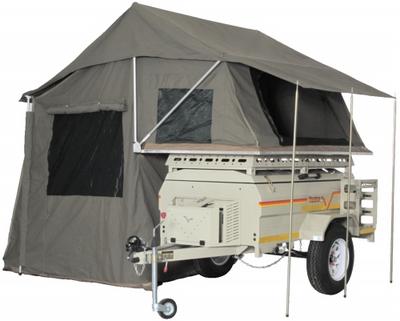

Savuti-XL with tent
The new Savuti-XL, is a quality eye-catching offroad trailer that is well designed to provide a more compact, yet spacious outdoor experience. A key feature is the new heavy-duty articulating coupler, essential for rough terrain, plus the 14 inch tyres that provide a true offroad capability.
Features
• Zinc-galvanised steel body, epoxy powder coated, colour beige
• A deep body of 590 mm for those larger items.
• Four extension legs providing stability on uneven ground
• A robust roof rack provides for carrying large items externally, such as tent, includes a table compartment
• The trailer is fitted with a large nosecone, with gas lift assisted lid, mounted on the front A-Frame
• Aluminium handle on trailer lid and nosecone lid
• Plastic handle toggle catch on trailer lid and nosecone lid
• A two-person tent attached onto the roof rack
• One jerry-can container (We recommend a 20 litre metal Proquip jerrycan, not included) and one gas bottle holder mounted on the side of the trailer, or two jerry-can containers please advise on order.
• A wide rear tailgate for access to the trailer interior, without lifting trailer lid
• A side door for access to drawout rack
• A gas lift assisted trailer lid allowing for access to the trailer interior, even with the tent attached
• 8 inch adjustable jockey wheel
• 36 inch 8 blade leaf springs
• 8 ring holders for securing luggage inside
• Forged Alko pivoting coupler, allowing full lateral and vertical articulation between towing vehicle and trailer
• Strong construction using 30% more steel than standard trailers allowing for 4×4 conditions
• Long-life 1250kg axle, numberplate twin light, multi-function LED lights
• Steel-belt light truck/recreational radial-ply tyres with a multipurpose pattern for on-and off-road use. The tyre offers excellent off-road traction, braking and manoeuvrability in wet or dry conditions.
These tyres have excellent high-speed steering ability plus high levels of comfort, ride refinement, low noise characteristics and improved straight-line performance in highway applications.
• Spare wheel.
Optional Equipment
• Rear tailgate draw-out rack 610mm x 830mm
• A stainless steel watertank with large tray (1030x825x70) on top, and gas bottle holder
• Side-drawout rack (490mm x 990mm)for housing an Engel 15 litre fridge/freezer (Model No: MT17F), or optional storage containers
• Optional side drawout rack for ammo boxes 455mm x 1075mm
| Dimensions | ||
| A | Height (over all) | 1580 mm |
|---|---|---|
| B | Height (side) | 1150 mm |
| C | Length (body) | 2110 mm |
| D | Length (over all) | 3225 mm |
| E | Width (inside) | 1135 mm |
| F | Width (over all) | 1585 mm |
| G | Ground Clearance | 300 mm to bottom of axle |
| I | Length (nose-cone) | 650 mm |
| H | Height (body) | 625 mm |
| Technical Info | |
| Tare Mass | 380 kg |
| GVM | 750 kg |
| Pay Load | 370 kg |
| Axle Length | 1400 mm |
| Axle Capacity | 1250 kg |
| Leaf Springs | 8 Blade 36 inch |
| Wheels | 205 x 14 inch |
| Doors | |
| Door (rear – height) | 440 mm |
| Door (rear – width) | 620 mm (J) |
| Door (side – height) | 400 mm |
| Door (side – width) | 600 mm |
