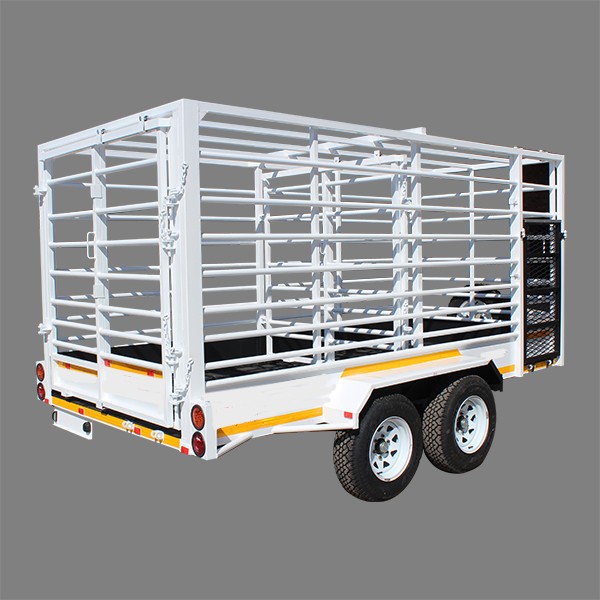

Star Bird 28 – African Wagon. Legal load capacity: +/- 2.6ton
- 1 x 4.0m x 1.8m Double axle cattle trailer with brakes, 2 x 2.5ton axles, 3.5ton GVM, 15” wheels.
- 3.5 Ton coupler in the front.
- 60mm Double jockey wheel in the front.
- 2.0mm Thick lipped channel floor with the wheels on the outside of the trailer.
- 100mm x 50mm x 6mm Open channal to be used for the A-frame.
- 76mm x 38mm 5mm Open channal to be used for the chassis.
- Parabolic HD leaf springs.
- Drain strips in the floor.
- 1.8m Rails, first 300mm closed with plate – main frame built from 50mm square tube.
- Rear column built from 100mm rectangle tube.
- Swing / sliding gate at the back – gate to hang from above on bearings.
- Swing / sliding gate in the middle – gate to hang from above on bearings.
- Colour: White OR Brown 2K Duco.
- 1 x Spare wheel 15” on the A-frame.
- 1 x Sliding gate on the right-hand side – gate to hang from above on bearings.
- 1 x Ramp on the right-hand side – can also be used at the back.
- M12 Removable grid on the floor.
- 3 x Additional supports in the length on the top.
- LED Lights.
