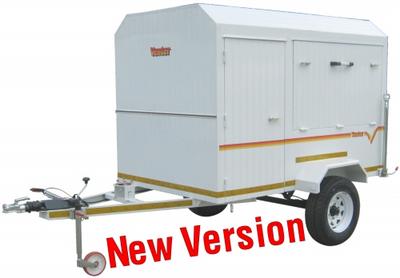

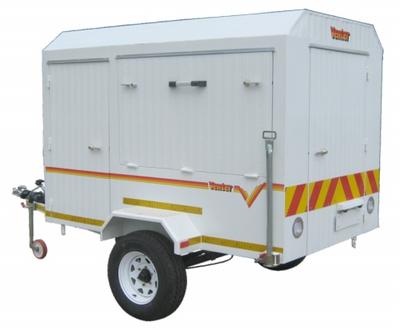

A Spacious Workshop Solution
This trailer is versatile enough for any in-the-field maintenance or construction activity. The spacious interior can easily accommodate many type of equipment and tool storage.
Features:
• A light weight, spacious and yet durable and well balanced trailer.
• The sturdily constructed body and floor, (from 0.9mm sheet steel) are corrosion resistant by means of electro-galvanising. (Channels and seams are rust protected with wax).

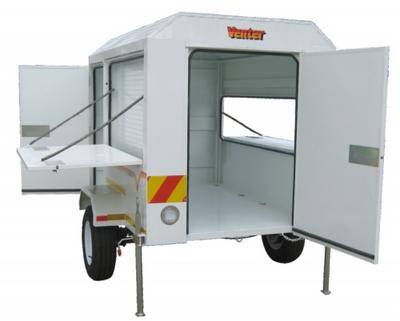

• Fold down side doors which can be used as work surfaces.
• Built in toolrack, with perforated panel.
• Doors are lockable, dust and waterproof.
• Lockable ‘Auto-reverse’coupler and handbrake.
• Including spare wheel 195×14 inch
• Multi-function LED lights
• Adjustable suport legs
• New Adjustable jockey wheel of polypropylene and polyurethane
• Robust aluminium handle on side flaps
• 7 x floor-mounted tie-down rings for securing items during travel
| Dimensions | ||
| A | Height (over all) | 2165 mm |
|---|---|---|
| B | Height (side) | 1670 mm |
| C | Length (body) | 2400 mm |
| D | Length (over all) | 3930 mm |
| E | Width (inside) | 1530 mm |
| F | Width (over all) | 2050 mm |
| G | Ground Clearance | 220 mm |
| Technical Info | |
| Tare Mass | 580 kg |
| GVM | 1600 kg |
| Pay Load | 1020 kg |
| Brakes | Run – in |
| Axle Length | 1830 mm |
| Axle Capacity | 1800 kg |
| Leaf Springs | 12 blade 36 inch |
| Wheels | 195 x 14 inch |
| Doors | |
| Door (rear – height) | 1345 mm |
| Door (rear – width) | 880 mm |
| Door (side – height) | 1275 mm |
| Door (side – width) | 675 mm |
| Serving Hatch (height) | 470 mm |
| Serving Hatch (width) | 2140 mm |
