An Economic Solution
In today’s economics times, solutions that are efficient and cost effective are essential. This off-road trailer provides the right balance between maximising space utilisation and compact size.

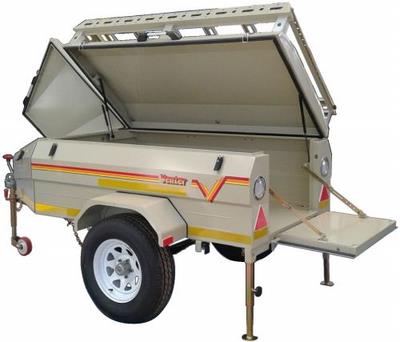

The trailer sports a deeper body than standard trailers, allowing for storage of typical camping equipment inside. Access to the interior is very easy with a rear tailgate and a gas-assisted top lid. A large nosecone is provided, jerry cans are externally mounted, freeing up valuable interior space. Added stability when parked, comes from four extension legs, that neatly tuck away..
A robust steel roof rack adds that extra provision for large and bulky items. This sturdy roof rack easily accommodates an optional two-man tent in a few configurations, and has a table compartment.
This new contemporary trailer is specifically designed for the outdoor enthusiast. It features superb space utilisation getting more into less. This trailer has :
Features
A deep body of over 500 mm for those larger items.
Large 14 inch wheels for rough terrain, plus spare wheel
Four extension legs providing stability on uneven ground
A robust steel roof rack provides for carrying large items externally
The trailer is fitted with a large nosecone mounted on the front A-Frame
Provision to attach a 2-man tent onto the roof rack
Two jerry-can containers mounted on the rear sides of the trailer
A wide rear tailgate for access to the trailer interior
A gas lift assisted flip-up trailer lid allowing for easy access to the trailer interior, even with the two-man tent attached
6 inch adjustable jockey wheel with two fitted bearings
36 inch 8 blade leaf springs
8 ring holders for securing luggage inside
Very sturdy hot dip galvanised coupler
Multi-function LED lights
Strong construction using 30% more steel
Optional
Rear tailgate draw-out rack 610mm x 830mm
Two person tent
A stainless steel watertank with large tray (1030x825x70) on top
| Dimensions | ||
| A | Height (over all) | 1330 mm |
|---|---|---|
| B | Height (side) | 840 mm |
| C | Length (body) | 1805 mm |
| D | Length (over all) | 2750 mm |
| E | Width (inside) | 1135 mm |
| F | Width (over all) | 1575 mm |
| G | Ground Clearance | 300 mm to bottom of axle |
| I | Length (nose-cone) | 650 mm |
| Technical Info | |
| Tare Mass | 280kg |
| GVM | 750kg |
| Pay Load | 470kg |
| Brakes | No brakes |
| Axle Length | 1400 mm |
| Axle Capacity | 1250kg |
| Leaf Springs | 8 blade 36inch |
| Wheels | 195×14 inch |
| Doors | |
| Door (rear – height) | 440 mm |
| Door (rear – width) | 620 mm |
