Kiosk 7ft
This is an ideal vending solution for entrepreneurs, who need to provide fast and efficient customer service. The trailer has a large and spacious interior that can easily accommodate equipment and goods, and two operators.
Features
• Roof height allows for full-height standing room.
• Floor space sufficient to accommodate fridge and/or freezer
• Floor is manufactured from quality corrosion resistant steel
• Body made from corrosion resistant steel
• Secure lockable serving hatch
• Serving hatch with top half as an awning and bottom as a counter top
• 4 x roof-mounted spring-loaded air vents for increased ventilation
• Internal overhead light is provided for illuminating the interior

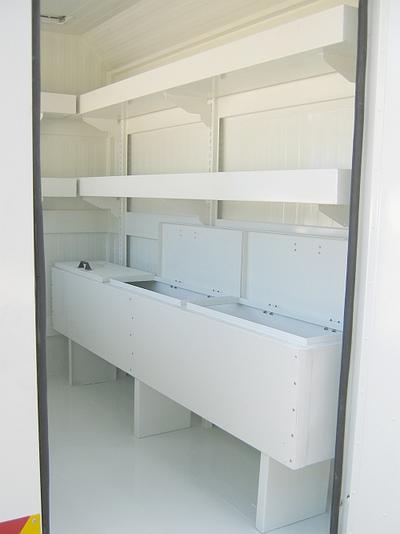

• Storage tray-shelves provided inside at the front and right side
• Pad-lockable ventilated nosecone compartment isolated from the rest of the vehicle
• 2 x spring-loaded air vents in the nosecone compartment for increased ventilation
• Gas bottle securing bracket in the nosecone for 2x19kg gas bottles
• Three heavy-duty adjustable support legs on trailer rear corners and A-frame for stabilizing on uneven ground
• Retractable and lockable access step for easy entry through rear door
• Pad-lockable rear access door
• New adjustable 200mm double polypropylene and PVC jockey wheel
• Multi-function LED lights
• Pad-lockable spare wheel bracket mounted on right side mudguard
• Galvanised ‘Sigma Auto-reverse type’ coupler
• Run-in brakes
• Caravan plug outlet for power supply on right back side of trailer
• 14 inch 6 stud wheels
• One spare wheel
• Floor covered with nonslip surface for easy cleaning
• Cool Box-insulation clad steel storage box, with a capacity of 230 litres. (over 180 x 340ml soft drink cans plus ice-packs)
• Optional electrical switchboard
Dimensions | ||
A | Height (over all) | 2585 mm |
---|---|---|
B | Height (side) | 2085 mm |
C | Length (body) | 2790 mm |
D | Length (over all) | 3205 mm |
E | Width (inside) | 1530 mm |
F | Width (over all) | 2000 mm |
G | Ground Clearance | 220 mm |
Technical Info | |
Tare Mass | 800 kg |
GVM | 1525 kg |
Pay Load | 725 kg |
Brakes | Braked |
Axle Length | 1830 mm |
Axle Capacity | 1800 kg |
Leaf Springs | 10 Blade |
Wheels | 195 x 14 inch |
Doors | |
Door (rear – height) | 1760 mm |
Door (rear – width) | 860 mm |
Serving Hatch (height) | 840 mm |
Serving Hatch (width) | 2205 mm |
