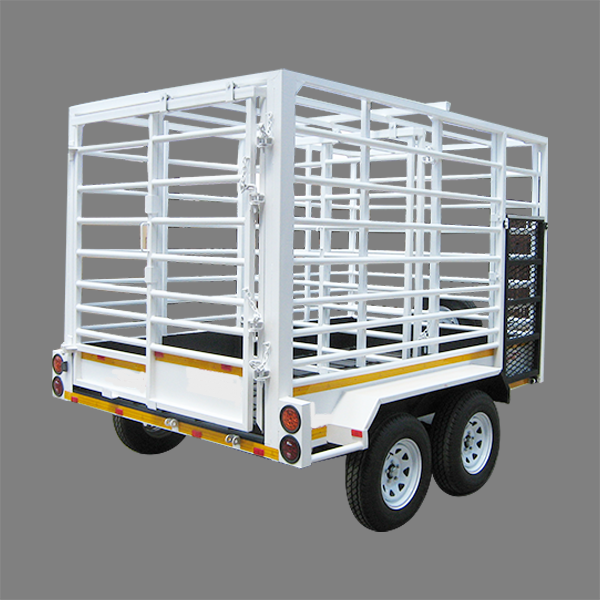

Star Bird 21
1 x 3.0m x 1.8m Double axle cattle trailer with brakes, 2 x 1.6ton axles, 2.3ton GVM, 14” wheels.
2.7 Ton coupler in the front.
60mm Jockey wheel in the front.
2.0mm Thick lipped channel floor with the wheels on the outside of the trailer.
76mm x 38mm x 5mm Open channal A-frame.
76mm x 38mm 5mm Open channal chassis.
1020mm, 8 blade HD leaf springs.
Drain strips in the floor.
1.8m Rails, first 300mm closed with plate – main frame built from 50mm square tube.
Rear column built from 100mm rectangle tube.
Swing / sliding gate at the back – gate to hang from above on bearings.
Swing / sliding gate in the middle – gate to hang from above on bearings.
Colour: White, Black, Green OR Brown 2K Duco.
1 x Spare wheel 14” on the A-frame.
1 x Sliding gate on the right-hand side – gate to hang from above on bearings.
1 x Ramp on the right-hand side – can also be used at the back.
M12 Removable grid on the floor.
3 x Additional supports in the length on the top.
