Hunter Offroader

Hunter Offroader The Hunter Offroader is a large trailer and comes standard with brakes and heavy-duty coupler. This model with special features is specifically designed for hunters, with a reinforced chassis for heavier loads. This trailer has much to offer, especially with the additional extra features. Features • Zinc galvanised coupler 'Sigma Autoreverse type' • Four pad-lockable jerry can holders • One heavy duty roof rack with table compartment able to carry a large tent • Two pad-lockable enclosures (equipment or tool box) • Two extending supporting back stays and one jockey wheel to provide levelling and stability when parked on uneven ground • 15 inch 6 stud rims with 215 tyres for rough terrain • One 215 x 15 inch spare wheel • Epoxy coated in white, beige or green, manufactured from quality zinc galvanised sheet steel • Adjustable jockey wheel • Axle capacity 2500kg • 2 Gabriel shock absorbers • 10 blade heavy-duty 50x8 915 mm leaf springs • Lockable tailgate that serves as a table top, or loading platform • Multi-function LED lights • Swing-out spare wheel attachment with maintenance free vesconite bushes • Large new nosecone with 4 tie-down rings able to house an 80 litre fridge, accessible from the front, with spring assisted flap for access to fridge controls

Dimensions
A	Height (over all)	1570 mm
B	Height (side)	800 mm
C	Length (body)	2100 mm
D	Length (over all)	3800 mm
E	Width (inside)	1100 mm
F	Width (over all)	1760 mm
G	Ground Clearance	330 mm
I	Length (nose-cone)	670 mm

Technical Info
Tare Mass	770 kg
GVM	2250 kg
Pay Load	1480 kg
Brakes	Run-in 2365 kg braked
Axle Length	1530 mm
Axle Capacity	2500 kg
Leaf Springs	10 Blade 50x8 915
Wheels	215 x 15 inch

Doors
Door (rear - height)	560 mm
Door (rear - width)	1020 mm

Details

Savuti with gas bottle holder

A Conservation Solution In today’s conservation-minded times, solutions that are efficient and cost effective are essential. This off-road trailer provides the right balance between maximising space utilisation and compact size. The trailer sports a deeper body than standard trailers, allowing for storage of typical camping equipment inside. Access to the interior is very easy with a rear tailgate and a gas-assisted top lid. Gas bottles and jerry cans are neatly tucked away in exterior spaces, freeing up valuable interior space. Added stability when parked, comes from four extension legs, that neatly tuck away.. A robust steel roof rack adds that extra provision for large and bulky items. This sturdy roof rack easily accommodates an optional two-man tent in a few configurations, and has a table compartment. This new contemporary trailer is specifically designed for the conservation-minded outdoor enthusiast. It features superb space utilisation getting more into less. This trailer has : Features • A deep body of over 500 mm for those larger items. • Large 14 inch wheels for rough terrain, plus spare wheel • Four extension legs providing stability on uneven ground • A robust steel roof rack with table storage compartment • The trailer is fitted with a secure gas cylinder compartment, for two 5 kg gas cylinders mounted on the front A-Frame • Provision to attach a 2-man tent onto the roof rack • Two jerry-can containers mounted on the rear sides of the trailer (We recommend a 20 litre metal Proquip jerrycan, not included) • A wide rear tailgate for access to the trailer interior • A gas lift assisted flip-up trailer lid allowing for easy access to the trailer interior, even with the two-man tent attached • 6 inch adjustable jockey wheel with two fitted bearings • 36 inch 8 blade leaf springs • 8 ring holders for securing luggage inside • Very sturdy hot dip galvanised coupler • Multi-function LED lights • Independent tailgate can be opened and closed with the trailer lid down Optional • Rear tailgate draw-out rack 610mm x 830mm • A stainless steel watertank with large tray (1030x825x70) on top • Two person tent • Nosecone

Dimensions
A	Height (over all)	1330 mm
B	Height (side)	840 mm
C	Length (body)	1805 mm
D	Length (over all)	2750 mm
E	Width (inside)	1135 mm
F	Width (over all)	1575 mm
G	Ground Clearance	300 mm to bottom of axle
I	Length (nose-cone)	520 mm

Technical Info
Tare Mass	280 kg
GVM	750 kg
Pay Load	470 kg
Brakes	No brakes
Axle Length	1400 mm
Axle Capacity	1250 kg
Leaf Springs	8 blade 36 inch
Wheels	195x14 inch

Doors
Door (rear - height)	440 mm
Door (rear - width)	620 mm

Details

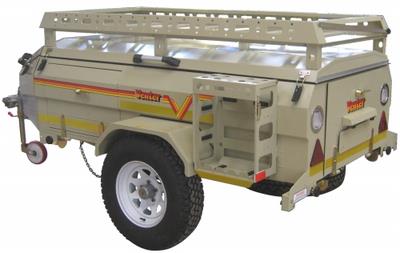

Savuti XL with rear or side rackout

Savuti-XL The new Savuti-XL, is a quality eye-catching offroad trailer that is well designed to provide a more compact, yet spacious outdoor experience. A key feature is the new heavy-duty articulating coupler, essential for rough terrain, plus the 14 inch tyres that provide a true offroad capability. Features • Zinc-galvanised steel body, epoxy powder coated, colour beige • A deep body of 590 mm for those larger items. • Four extension legs providing stability on uneven ground • A robust roof rack provides for carrying large items externally, such as tent, includes a table compartment • The trailer is fitted with a large nosecone, with gas lift assisted lid, mounted on the front A-Frame • Aluminium handle on trailer lid and nosecone lid • Plastic handle toggle catch on trailer lid and nosecone lid • Provision to attach a tent onto the roof rack • One jerry-can container (We recommend a 20 litre metal Proquip jerrycan, not included) and one gas bottle holder mounted on the side of the trailer, or two jerry-can containers please advise on order. • A wide rear tailgate for access to the trailer interior, without lifting trailer lid • A side door for access to drawout rack • A gas lift assisted trailer lid allowing for access to the trailer interior, even with the tent attached • 8 inch adjustable jockey wheel • 36 inch 8 blade leaf springs • 8 ring holders for securing luggage inside • Forged Alko pivoting coupler, allowing full lateral and vertical articulation between towing vehicle and trailer • Strong construction using 30% more steel than standard trailers allowing for 4x4 conditions • Long-life 1250kg axle, numberplate twin light, multi-function LED lights • Steel-belt light truck/recreational radial-ply tyres with a multipurpose pattern for on-and off-road use. The tyre offers excellent off-road traction, braking and manoeuvrability in wet or dry conditions. These tyres have excellent high-speed steering ability plus high levels of comfort, ride refinement, low noise characteristics and improved straight-line performance in highway applications. • Spare wheel. • Side-drawout rack (490mm x 990mm) for housing an Engel 15 litre fridge/freezer (Model No: MT17F), or optional storage containers Optional Equipment • Tailgate drawout rack 610mm x 830mm • Tent with ladder for two adults (tent factory fitted with order) • A stainless steel watertank with large tray (1030x825x70) on top and gas bottle holder • Optional side drawout rack for ammo boxes 455mm x 1075mm

Dimensions
A	Height (over all)	1330 mm
B	Height (side)	840 mm
C	Length (body)	2110 mm
D	Length (over all)	3225 mm
E	Width (inside)	1135 mm
F	Width (over all)	1585 mm
G	Ground Clearance	300 mm to bottom of axle
J	Length (nose-cone)	650 mm
H	Height (body)	625 mm

Technical Info
Tare Mass	380 kg
GVM	750 kg
Pay Load	370 kg
Brakes	None
Axle Length	1400 mm
Axle Capacity	1250 kg
Leaf Springs	8 blade 36 inch
Wheels	205x14"

Doors
Door (rear - height)	400 mm
Door (rear - width)	I - Tailgate 620 mm
Door (side - height)	440 mm
Door (side - width)	620 mm

Details

Venter Bushbaby Braked

The Bushbaby trailer has had steady improvements added over the years, making this a superb off-road trailer, well-suited to harsh outdoor conditions. With addition of the extra features this trailer really shines as an efficient space utilising vehicle. It comes in an unbraked and braked version. Features Bushbaby Braked With Extended Standard Features see Extended Standard Features with this link • Rear drawout rack for ammo boxes 900mm x 1130mm • Side drawout rack for ammo boxes 455mm x 1075mm • Washing table nylon storage rollers and two elastic bungee cords • Lockable water tank filler cap • Stainless steel washing table mounting brackets • Zinc galvanised coupler "Sigma Autoreverse type" • Two pad-lockable jerry can holders(We recommend a 20 litre metal Proquip jerrycan, not included) • One heavy duty steel roof rack with table compartment able to carry a large tent • Two pad-lockable enclosures (equipment or tool box) • Two extending supporting back stays and one jockey wheel to provide levelling and stability when parked on uneven ground • 15 inch 6 stud rims with 215 tyres for rough terrain • One spare wheel • Epoxy powder-coated, cured at 210 degrees C manufactured from zinc galvanised sheet steel • 4 ring holders to tighten luggage • Adjustable jockey wheel for more info click here • Axle capacity 1500kg • 2 Gabriel shock absorbers • 12 blade 36 inch leaf springs • Pad-lockable tailgate that serves as a table top • Multi-function LED lights • Swing-out spare wheel attachment with maintenance free vesconite bushes • Large new nosecone with 4 tie-down rings able to house an 80 litre fridge, accessible from the front, with spring assisted flap for access to fridge controls.

Dimensions
A	Height (over all)	1570 mm
B	Height (side)	800 mm
C	Length (body)	1860 mm
D	Length (over all)	3560 mm
E	Width (inside)	1100 mm
F	Width (over all)	1760 mm
G	Ground Clearance	330 mm
I	Length (nose-cone)	670 mm

Technical Info
Tare Mass	360 kg
GVM	1470 kg
Pay Load	1100 kg
Brakes	Run-in
Axle Length	1530 mm
Axle Capacity	1800 kg (rated to 1500kg)
Leaf Springs	12 Blade 36 inch
Wheels	215 x 15 inch

Doors
Door (rear - height)	560 mm
Door (rear - width)	1020 mm
Door (side - height)	540 mm
Door (side - width)	510 mm

Details

Venter Bushbaby Braked Fitted With All Optional Equipment

The Bushbaby trailer has had steady improvements added over the years, making this well-suited to harsh outdoor conditions. With addition of the extra features this trailer really shines. It comes in an unbraked and braked version. Bushbaby Braked Fitted With All Optional Equipment • Rear drawout rack for ammo boxes 900mm x 1130mm • Side drawout rack for ammo boxes 455mm x 1075mm • Washing table nylon storage rollers • Lockable water tank filler cap • Stainless steel washing table mounting brackets • Two pad-lockable jerry can holders (We recommend a 20 litre metal Proquip jerrycan, not included) • One heavy duty steel roof rack with table compartment able to carry a large tent • Kitchenette with twin hob gas stove and spice storage rack • Two extending supporting back stays and one jockey wheel to provide levelling • 15 inch 6 stud rims with 215 tyres for rough terrain • One spare wheel • Epoxy coated in white, beige or green, manufactured from quality zinc galvanised sheet steel. • 6 ring holders with securing straps • Axle capacity 1800kg • 2 Gabriel shock absorbers • 12 blade 36 inch leaf springs • Pad-lockable tailgate that serves as a table top • Alko-Trailco coupler • 2 x lid net zip bags • 1 x pad-lockable 5kg gas cylinder holder • Multi-function LED lights • Swing-out spare wheel attachment with maintenance-free vesconite bushes • Accidental spare wheel bracket stop with reinforced quarter panels • Large new nosecone with 4 tie-down rings able to house an 80 litre fridge, accessible from the front, with spring assisted access flap • 1 x Senior tent 2-4 man • 1 x Washing table stainless steel • 1 x 304 S/S 80l water tank complete with lockable filler cap • Water

Dimensions
A	Height (over all)	1570 mm
B	Height (side)	800 mm
C	Length (body)	1860 mm
D	Length (over all)	3560 mm
E	Width (inside)	1100 mm
F	Width (over all)	1760 mm
G	Ground Clearance	330 mm
I	Length (nose-cone)	670 mm

Technical Info
Tare Mass	440 kg
GVM	1470 kg
Pay Load	1030 kg
Brakes	Run-in
Axle Length	1530 mm
Axle Capacity	1800 kg
Leaf Springs	12 Blade 36 inch
Wheels	215 x 15 inch

Doors
Door (rear - height)	560 mm
Door (rear - width)	1020 mm
Door (side - height)	540 mm
Door (side - width)	510 mm

Details

Venter Offroader Braked

The Offroader is the largest in the range and comes standard with brakes and heavy-duty coupler. The version with extra features is designed for serious outdoor adventurers. This trailer has much to offer, especially with the additional extra features. Features Offroader Braked With Extended Standard Features see Extended Standard Features with this link • Rear drawout rack for ammo boxes 900mm x 1130mm • Side drawout rack for ammo boxes 455mm x 1075mm • Washing table nylon storage rollers and two elastic bungee cords • Lockable water tank filler cap • Stainless steel washing table mounting brackets • Zinc galvanised coupler 'Sigma Autoreverse type' • Two pad-lockable jerry can holders (We recommend a 20 litre metal Proquip jerrycan, not included) • One heavy duty roof rack with table compartment able to carry a large tent • Two pad-lockable enclosures (equipment or tool box) • Two extending supporting back stays and one jockey wheel to provide levelling and stability when parked on uneven ground • 15 inch 6 stud rims with 215 tyres for rough terrain • One spare wheel • Epoxy coated in white, beige or green, manufactured from quality zinc galvanised sheet steel • 4 ring holders to tighten luggage • Adjustable jockey wheel • Axle capacity 1800kg • 2 Gabriel shock absorbers • 12 blade 36 inch leaf springs • Lockable tailgate that serves as a table top • Multi-function LED lights • 1 x pad-lockable toolbox/electrical box with caravan plug • Swing-out spare wheel attachment with maintenance free vesconite bushes • Large new nosecone with 4 tie-down rings able to house an 80 litre fridge, accessible from the front, with spring assisted flap for access to fridge controls

Dimensions
A	Height (over all)	1570 mm
B	Height (side)	800 mm
C	Length (body)	2100 mm
D	Length (over all)	3800 mm
E	Width (inside)	1100 mm
F	Width (over all)	1780 mm
G	Ground Clearance	330 mm
I	Length (nose-cone)	670 mm

Technical Info
Tare Mass	500 kg
GVM	1530 kg
Pay Load	1030 kg
Brakes	Run-in
Axle Length	1530 mm
Axle Capacity	1800 kg
Leaf Springs	12 Blade 36 inch
Wheels	215 x 15 inch

Doors
Door (rear - height)	560 mm
Door (rear - width)	1020 mm
Door (side - height)	540 mm
Door (side - width)	650 mm

Details

Venter Offroader Braked Fitted With All Optional Equipment

Offroader Braked Fitted With All Optional Equipment • Two pad-lockable jerry can holders (We recommend a 20 litre metal Proquip jerrycan, not included) • One heavy duty roof rack with table compartment able to carry a large tent • Kitchenette with twin hob gas stove and spice storage rack • Two extending supporting back stays and one jockey wheel to provide levelling and stability when parked on uneven ground • 15 inch 6 stud rims with 215 tyres for rough terrain • One spare wheel • Epoxy coated in white, beige or green, manufactured from quality zinc galvanised sheet steel • 6 ring holders for securing ratchet straps • Adjustable jockey wheel. • Axle capacity 1800kg • 2 Gabriel shock absorbers • 12 blade 36 inch leaf springs • Pad-lockable tailgate that serves as a table top • Multi-function LED lights • Alko-Trailco coupler • 2 x lid net zip bags • 1 x pad-lockable 5kg gas cylinder holder • 1 x pad-lockable toolbox or electrical box with caravan plug • Swing-out spare wheel attachment with maintenance free vesconite bushes • Large new nosecone with 4 tie-down rings able to house an 80 litre fridge, accessible from the front, with spring assisted flap for access to fridge controls • Rear drawout rack for ammo boxes 900mm x 1130mm • Side drawout rack for ammo boxes 455mm x 1075mm • 1 x Senior tent 2-4 man • 1 x Washing table stainless steel • 1 x 304 S/S 80l water tank with locking filler cap and outlet tap. Additional optional extras: Optional crockery, cutlery and braai sets 6 x Large dinner plates 6 x Steak platters 6 x Small side plates 6 x Soup/Breakfast bowls 6 x Whisky glasses 6 x Tall glasses 6 x Wine glasses 6 x Coffee mugs 1 x Salt shaker 1 x Pepper shaker 1 x Milk jug 1 x Sugar bowl Cutlery Set 1 x Cutlery set zip bag 6 x Steak knives 6 x Forks 6 x Table spoons 6 x Dessert spoons 1 x Combo can-opener Braai Set 1 x Braai set zip bag 1 x Large braai tong 1 x Large braai lifter 1 x large braai fork 1 x Large braai knife 1 x long braai cleaning brush 1 x Small braai tong

Dimensions
A	Height (over all)	1570 mm
B	Height (side)	800 mm
C	Length (body)	2100 mm
D	Length (over all)	3800 mm
E	Width (inside)	1100 mm
F	Width (over all)	1760 mm
G	Ground Clearance	330 mm
I	Length (nose-cone)	670 mm

Technical Info
Tare Mass	520 kg
GVM	1550 kg
Pay Load	1030 kg
Brakes	Run-in
Axle Length	1530 mm
Axle Capacity	1800 kg
Leaf Springs	12 Blade 36 inch
Wheels	215 x 15 inch

Doors
Door (rear - height)	560 mm
Door (rear - width)	1020 mm
Door (side - height)	540 mm
Door (side - width)	650 mm

Details

Venter Savuti unbraked with tent

A Conservation Solution In today’s conservation-minded times, solutions that are efficient and cost effective are essential. This off-road trailer provides the right balance between maximising space utilisation and compact size. The trailer sports a deeper body than standard trailers, allowing for storage of typical camping equipment inside. Access to the interior is very easy with a rear tailgate and a gas-assisted top lid. Gas bottles and jerry cans are neatly tucked away in exterior spaces, freeing up valuable interior space. Added stability when parked, comes from four extension legs, that neatly tuck away.. A robust roof rack adds that extra provision for large and bulky items. This sturdy roof rack easily accommodates a two-man tent in a few configurations, and has a table compartment. This new contemporary trailer is specifically designed for the conservation-minded outdoor enthusiast. It features superb space utilisation getting more into less. This trailer has : Features • A deep body of over 500 mm for those larger items. • Large 14 inch wheels for rough terrain, plus spare wheel • Four extension legs providing stability on uneven ground • A robust roof rack and table compartment • The trailer is fitted with a secure gas cylinder compartment, for two 5 kg gas cylinders mounted on the front A-Frame • A quality tent with ladder for two adults is fitted to the trailer • Two jerry-can containers mounted on the rear sides of the trailer (We recommend a 20 litre metal Proquip jerrycan, not included) • A wide rear tailgate for access to the trailer interior • A twin gas lift assisted flip-up trailer lid allowing for easy access to the trailer interior, even with the two-man tent attached • 6 inch adjustable jockey wheel with two fitted bearings • 36 inch 8 blade leaf springs • 8 ring holders for securing luggage inside • Hot dip galvanised cast iron coupler • Multi-function LED lights • Independent tailgate able to open and close with the trailer lid down • 30% more steel than conventional trailers Optional • Rear tailgate draw-out rack 610mm x 830mm

Dimensions
A	Height (over all)	1330 mm
B	Height (side)	840 mm
C	Length (body)	1805 mm
D	Length (over all)	2750 mm
E	Width (inside)	1135 mm
F	Width (over all)	1575 mm
G	Ground Clearance	300 mm to bottom of axle
I	Length (nose-cone)	270 mm

Technical Info
Tare Mass	280 kg
GVM	750 kg
Pay Load	470 kg
Brakes	No brakes
Axle Length	1400 mm
Axle Capacity	1250 kg
Leaf Springs	8 Blade 36 inch
Wheels	195 x 14 inch

Doors
Door (rear - height)	440 mm
Door (rear - width)	620 mm

Details

Venter Savuti with nosecone

An Economic Solution In today’s economics times, solutions that are efficient and cost effective are essential. This off-road trailer provides the right balance between maximising space utilisation and compact size. The trailer sports a deeper body than standard trailers, allowing for storage of typical camping equipment inside. Access to the interior is very easy with a rear tailgate and a gas-assisted top lid. A large nosecone is provided, jerry cans are externally mounted, freeing up valuable interior space. Added stability when parked, comes from four extension legs, that neatly tuck away.. A robust steel roof rack adds that extra provision for large and bulky items. This sturdy roof rack easily accommodates an optional two-man tent in a few configurations, and has a table compartment. This new contemporary trailer is specifically designed for the outdoor enthusiast. It features superb space utilisation getting more into less. This trailer has : Features • A deep body of over 500 mm for those larger items. • Large 14 inch wheels for rough terrain, plus spare wheel • Four extension legs providing stability on uneven ground • A robust steel roof rack provides for carrying large items externally • The trailer is fitted with a large nosecone mounted on the front A-Frame • Provision to attach a 2-man tent onto the roof rack • Two jerry-can containers mounted on the rear sides of the trailer • A wide rear tailgate for access to the trailer interior • A gas lift assisted flip-up trailer lid allowing for easy access to the trailer interior, even with the two-man tent attached • 6 inch adjustable jockey wheel with two fitted bearings • 36 inch 8 blade leaf springs • 8 ring holders for securing luggage inside • Very sturdy hot dip galvanised coupler • Multi-function LED lights • Strong construction using 30% more steel Optional • Rear tailgate draw-out rack 610mm x 830mm • Two person tent • A stainless steel watertank with large tray (1030x825x70) on top

Dimensions
A	Height (over all)	1330 mm
B	Height (side)	840 mm
C	Length (body)	1805 mm
D	Length (over all)	2750 mm
E	Width (inside)	1135 mm
F	Width (over all)	1575 mm
G	Ground Clearance	300 mm to bottom of axle
I	Length (nose-cone)	650 mm

Technical Info
Tare Mass	280kg
GVM	750kg
Pay Load	470kg
Brakes	No brakes
Axle Length	1400 mm
Axle Capacity	1250kg
Leaf Springs	8 blade 36inch
Wheels	195x14 inch

Details

Venter Savuti with nosecone and water tank

An Economic Solution In today’s economics times, solutions that are efficient and cost effective are essential. This off-road trailer provides the right balance between maximising space utilisation and compact size. The trailer sports a deeper body than standard trailers, allowing for storage of typical camping equipment inside. Access to the interior is very easy with a rear tailgate and a gas-assisted top lid. A large nosecone is provided, jerry cans are externally mounted, freeing up valuable interior space. Added stability when parked, comes from four extension legs, that neatly tuck away. A robust steel roof rack adds that extra provision for large and bulky items. This sturdy roof rack easily accommodates an optional two-man tent in a few configurations, and has a table compartment. This new contemporary trailer is specifically designed for the outdoor enthusiast. It features superb space utilisation getting more into less. This trailer has : Features • A deep body of over 500 mm for those larger items. • Large 14 inch wheels for rough terrain, plus spare wheel • Four extension legs providing stability on uneven ground • A robust steel roof rack provides for carrying large items externally • The trailer is fitted with a large nosecone mounted on the front A-Frame • Provision to attach a 2-man tent onto the roof rack • A stainless steel watertank with large tray (1030x825x70) on top • Two jerry-can containers mounted on the rear sides of the trailer (We recommend a 20 litre metal Proquip jerrycan, not included) • A wide rear tailgate for access to the trailer interior • Independent tailgate can be opened and closed with the trailer lid down • A gas lift assisted flip-up trailer lid allowing for easy access to the trailer interior, even with the two-man tent attached • 6 inch adjustable jockey wheel • 36 inch 8 blade leaf springs • 8 ring holders for securing luggage inside • Very sturdy hot dip galvanised coupler • Strong construction using 30% more steel

Dimensions
A	Height (over all)	1330 mm
B	Height (side)	840 mm
C	Length (body)	1805 mm
D	Length (over all)	2750 mm
E	Width (inside)	1135 mm
F	Width (over all)	1575 mm
G	Ground Clearance	300 mm to bottom of axle
I	Length (nose-cone)	650 mm

Technical Info
Tare Mass	280 kg
GVM	750 kg
Pay Load	470 kg
Brakes	No brakes
Axle Length	1400 mm
Axle Capacity	1250 kg
Leaf Springs	8 Blade 36 inch
Wheels	195x14 inch

Doors
Door (rear - height)	400 mm
Door (rear - width)	620 mm

Details
